FIRŠT actuators EMV 110, series S9000 2P, are 2-point actuators designed for operating 2-way, 3-way and 6-way valves with clip system (DN 15 - DN 25).
| Code | TYPE | Voltage | Rotation time | Control signal | Connection | Max. torque [Nm] | Weight [kg] |
| 14009 | S99V0-M 2P | 230 VAC 50 Hz | 20s/90° | 2-point SPST | Molex | 5 | 0,39 |
| 14010 | S9GV0-K 2P | 230 VAC 50 Hz | 20s/90° | 2-point SPST | Cable | 5 | 0,48 |
| 14017 | S99V0-M 2P | 230 VAC 50 Hz | 20s/90° | 2-point SPST | Molex | 5 | 0,48 |
| 14018 | S99V0-K 2P | 230 VAC 50 Hz | 20s/90° | 2-point SPST | Cable | 5 | 0,33 |
| Control: | 2-point SPST |
| Supply voltage: | 230 VAC 50Hz / 24 VAC 50Hz |
| Rotation time: | 20s/90°, 40s/90°, 55s/90°, 80s/90°, 110s/90° |
| Power consumption: |
9 VA (operation), 0,5W (stand by relay on), 0 VA (stand by relay off) |
| Max.Torque: | 5 Nm |
| Protection class: | II |
| Enclosure rating: | IP40 (Molex), IP44 (Cable connection) - IP44 (specially sealed Molex cable) |
| Connection: | cable 1 m, 3 x 0,75 mm2/ / Molex connector |
| Direction of rotation: | CW/CCW defined 90° angle |
| Manual operation: |
with or without handle and button on the cover |
| Position indicator: | handle with position indicator / position indicator |
| Media temperature: | +2°C..+110°C (With optional SCA adaptor -15°C to +125°C, briefly up to +150°C) |
| Ambient temperature: |
0°C..+55°C |
| Storage temperature: | -10°C..+70°C |
| Humidity: | 0%..80% R.H. (non condensed) |
Auxiliary switch: one potencial free auxiliary switch in the end position of the actuator is available as an option.
Power supply: 230V 50Hz or 24V 50Hz
Connection: Molex connector (IP40) and optional specially sealed Molex cable (IP44) or cable (3x0,75mm2, l=1m)- (IP44).
Different running times: 20s/90°, 40s/90°, 55s/90°, 80s/90°, 110s/90°
Solar/cooling adapter: Heat barrier for protection of the actuator in solar or cooling systems.
Manual control handle: with or without manual control handle
| Code | Image | Designation | Data Sheet |
| 58100 |
|
SCA adapter | Data sheet SCA |
| 58102 |
|
ICA adapter set (ISO-CLIP SYSTEM) | Data sheet ICA |
| Code | Image | Designation | Data Sheet |
| 10556 |
|
Cable connector with molex IP 40 3x0.75mm 2 l=1m | Data sheet IP40 Molex cable connector |
| 10561 |
|
Cable connector with molex IP 40 3x0.75mm 2 1,7m | Data sheet IP40 Molex cable connector |
| 10557 |
|
Cable connector with molex IP 40 4x0.5mm 2 l=1m | Data sheet IP40 Molex cable connector |
| 10755 |
|

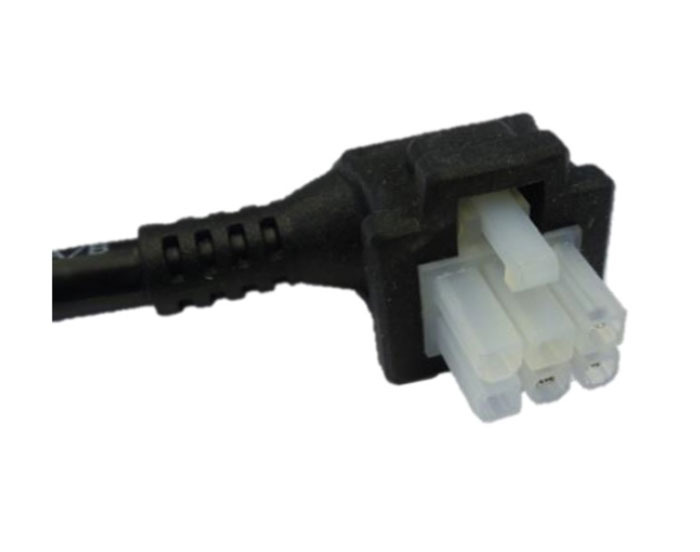

Cable connector with molex IP44 3x0.75mm 2 l=1,7m | Data sheet IP44 Molex cable connector |
| 10756 |
|
Cable connector with molex IP44 4x0.5mm 2 l=1,7m | Data sheet IP44 Molex cable connector |
| 52214 |
|
Auxiliary switch kit S1 S9000 90° | Data sheet Auxiliary switch_S1 |
| 52215 |
|
Auxiliary switch kit S1 S9000 60° | Data sheet Auxiliary switch_S1 |
