Products - ACTUATORS For rotary mixers, reversible and ball valves

S9000 - 3P

2-way and 3-way valves

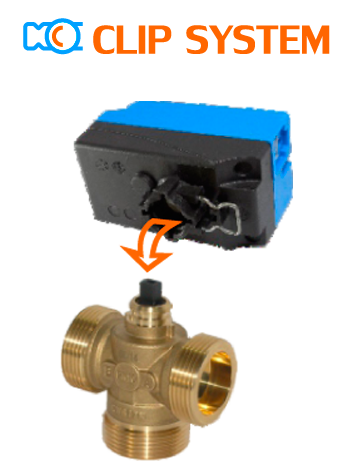

FIRŠT actuators EMV 110, series S9000 3P, are 3-point actuators designed for operating 2-way and 3-way valves with clip system (DN 15 - DN 25).

  • The FIRŠT S9000 3P actuators have defined direction of rotation (90° rotating angle).
  • Actuators are available with cable or Molex connection with or without manual control handle.
  • Recommended for mixing and diverting applications.

Back to products / ACTUATORS

S9000-3P

S9000 3P, for 2-way and 3-way valves (90° rotation)

Code TYPE Voltage Rotation time Control signal Connection Max. torque [Nm] Weight [kg]
14049 S9FR0-M 3P 230 VAC 50 Hz 110s/90° 3-point SPDT Molex 5 0,33
14050 S9FR0-K 3P 230 VAC 50 Hz 110s/90° 3-point SPDT Cable 5 0,48
14041 S9FV0-M 3P 230 VAC 50 Hz 20s/90° 3-point SPDT Molex 5 0,33
14042 S9FV0-K 3P 230 VAC 50 Hz 20s/90° 3-point SPDT Cable 5 0,48
14053 S91V0-M 3P 230 VAC 50 Hz 20s/90° 3-point SPDT Molex 5 0,33
14054 S91V0-K 3P 230 VAC 50 Hz 20s/90° 3-point SPDT Cable 5 0,48
Control: 3-point SPDT
Supply voltage: 230 VAC 50Hz / 24 VAC 50Hz
Rotation time: 20s/90°, 40s/90°, 55s/90°, 80s/90°,
110s/90°,220s/90°
Power consumption: 5 VA (operation), 0 VA (stand by)
Max.Torque: 5 Nm
Protection class: II
Enclosure rating: IP40 (Molex), IP44 (Cable connection),
IP44 (specially sealed Molex cable)
Connection: cable 1 m, 3 x 0,75 mm2/ / Molex connector
Direction of rotation: CW/CCW defined 90° angle
Manual operation: with or without handle and button on the cover
Position indicator: handle with position indicator / position indicator
Media temperature: +2°C..+110°C (With optional SCA adaptor -15°C to +125°C, briefly up to +150°C)
Ambient temperature: 0°C..+55°C
Storage temperature: -10°C..+70°C
Humidity: 0%..80% R.H. (non condensed)

Operation:

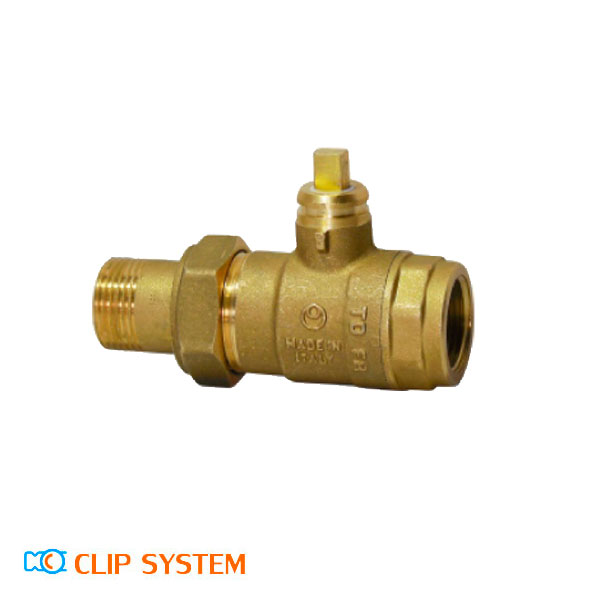

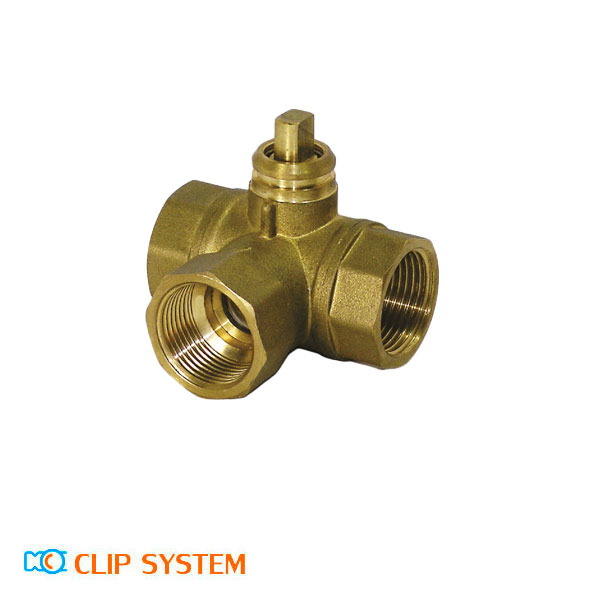

Actuators S9FR0 are recommended for mixing or diverting applications with FBV 230C valves from DN20 to DN 25 or FBV 330C valves. Actuators can also be used for on/off applications with FBV 200C valves and modulating water control with FBV 200C-M control valves.

Installation position:

S9000-3P

Electrical connection:

S9000-3P

Installation examples:

S9000-3P

Features and options:

Auxiliary switch: one potencial free auxiliary switch in the end position of the actuator is available as an option.
Power supply: 230V 50Hz or 24V 50Hz
Connection: Molex connector (IP40) and optional specially sealed Molex cable (IP44) or cable (3x0,75mm2, l=1m)- (IP44).
Different running times: 20s/90°, 40s/90°, 55s/90°, 80s/90°, 110s/90°, 220s/90°
Solar/cooling adapter: Heat barrier for protection of the actuator in solar or cooling systems.

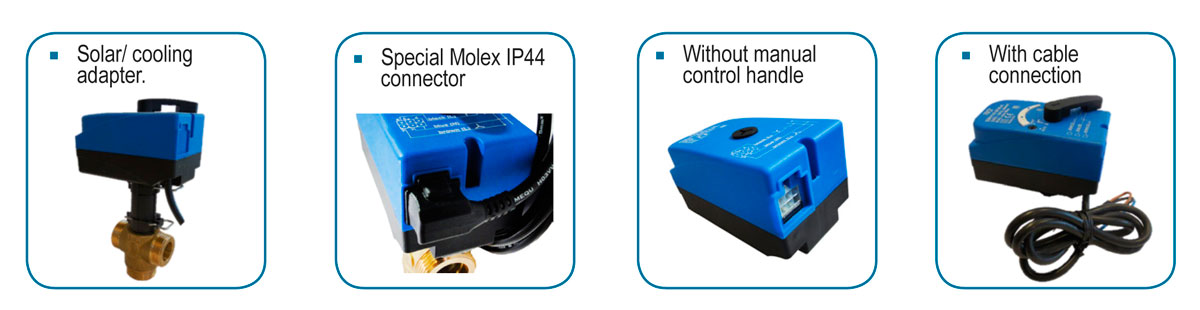

Manual control handle: with or without manual control handle

S9000-3P

ADAPTOR KITS

Code Image Designation Data Sheet
58100 SCA adapter Data sheet SCA
58102 ICA adapter set (ISO-CLIP SYSTEM) Data sheet ICA

OPTIONS

Code Image Designation Data Sheet
10556 Cable connector with molex IP 40 3x0.75mm 2 l=1m Data sheet IP40 Molex cable connector
10561 Cable connector with molex IP 40 3x0.75mm 2 1,7m Data sheet IP40 Molex cable connector
10557 Cable connector with molex IP 40 4x0.5mm 2 l=1m Data sheet IP40 Molex cable connector
10755 Cable connector with molex IP44 3x0.75mm 2 l=1,7m Data sheet IP44 Molex cable connector
10756 Cable connector with molex IP44 4x0.5mm 2 l=1,7m Data sheet IP44 Molex cable connector
52214 Auxiliary switch kit S1 S9000 90° Data sheet Auxiliary switch_S1
52215 Auxiliary switch kit S1 S9000 60° Data sheet Auxiliary switch_S1
