S9000 - MOD X MIX

3-way and 4-way rotary valves

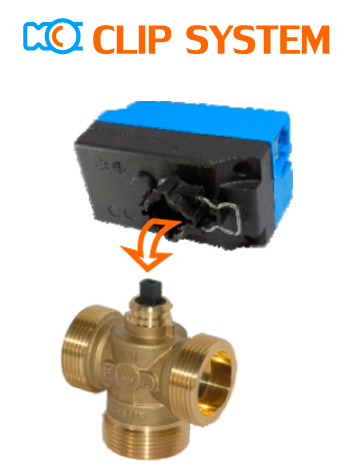

FIRŠT actuators EMV 110, series S9000 MOD X MIX, are modulating control actuators designed for operating 3-way and 4-way rotary valves with clip system (DN 15 - DN 25).

  • The FIRŠT S9000 MOD X MIX actuators have control signal range (0-10V, 4..20mA) and output signal 0..10V DC.
  • Actuators are available with cable or Molex connection with or without manual control handle.
  • Actuators have DIP switches for setting different functions of the actuator.
  • Recommended for mixing and diverting applications.

Back to products / ACTUATORS

S9000-MIX_MOD

S9000 MOD X MIX, for 3-way and 4-way rotary valves (90° rotation)

Code TYPE Voltage Rotation time Control signal Max. torque [Nm] Weight [kg]
14140 S9FR7-M MOD X MIX 24V ~ 50 Hz 110s/90° Modulating 0-10 V 5 0,33
14402 S9FR7-K MOD X MIX 24V ~ 50 Hz 110s/90° Modulating 0-10 V 5 0,48
Control: 0...10 VDC, 4...20 mA
Output signal: 0... 10 VDC, max < 0,5 mA/ 10V
Supply voltage: 24 VAC , 50Hz
Rotation time: 20s/90°, 40s/90°, 55s/90°, 80s/90°, 110s/90°,
Power consumption: 3,5 VA (operation), 1,5 VA ( in stand by)
Max.Torque: 5 Nm
Protection class: II
Enclosure rating: IP40 (Molex), IP44 (Cable connection),
IP44 (specially sealed Molex cable)
Connection: cable 4 x 0,5 mm2, l=1m / Molex connection
Direction of rotation: defined CW/CCW (90°)
Manual operation: with or without handle and button on the cover
Position indicator: handle with position indicator
Media temperature: +2°C..+110°C (With optional SCA adaptor -15°C to +125°C,
briefly up to +150°C)
Ambient temperature: 0°C..+55°C
Storage temperature: -10°C..+70°C
Humidity: 0%..80% R.H. (non condensed)

Operation:

Actuators S9FR0 MOD X MIX are recommended for mixing or diverting applications with FMV 130C and FMV 140C valves from DN15 to DN 25 and for mixing applications with FMV H-151C valves.

Installation position:

S9000-MIX_MOD

Electrical connection:

S9000-MIX_MOD

Installation examples:

S9000-MIX_MOD

Features and options:

Connection: Molex connector (IP40) and optional specially sealed Molex cable (IP44) or cable - (IP44).
Different running times: 20s/90°, 40s/90°, 55s/90°, 80s/90°,110s/90°.
Manual control handle: with or without manual control handle.
Solar/cooling adapter: Heat barrier for protection of the actuator in solar or cooling systems.

Different options:

S9000-MIX_MOD


S8000-2PND

Datasheet

S9000 MOD X MIX

Instructions
Actuators S9000 MOD X MIX with
FMV 130C valves

S9000 MOD X MIX

Instructions
Actuators S9000 MOD X MIX with
FMV H-151C valves

S9000-2PND

Series 9000
compatibility table

OPTIONS

Code Image Designation Data Sheet
10556 Cable connector with molex IP 40 3x0.75mm 2 l=1m Data sheet IP40 Molex cable connector
10561 Cable connector with molex IP 40 3x0.75mm 2 1,7m Data sheet IP40 Molex cable connector
10557 Cable connector with molex IP 40 4x0.5mm 2 l=1m Data sheet IP40 Molex cable connector
10755 Cable connector with molex IP44 3x0.75mm 2 l=1,7m Data sheet IP44 Molex cable connector
10756 Cable connector with molex IP44 4x0.5mm 2 l=1,7m Data sheet IP44 Molex cable connector
52214 Auxiliary switch kit S1 S9000 90° Data sheet Auxiliary switch_S1
52215 Auxiliary switch kit S1 S9000 60° Data sheet Auxiliary switch_S1


FMV 130C
FMV 130C
FMVH151C
FMV H-151C

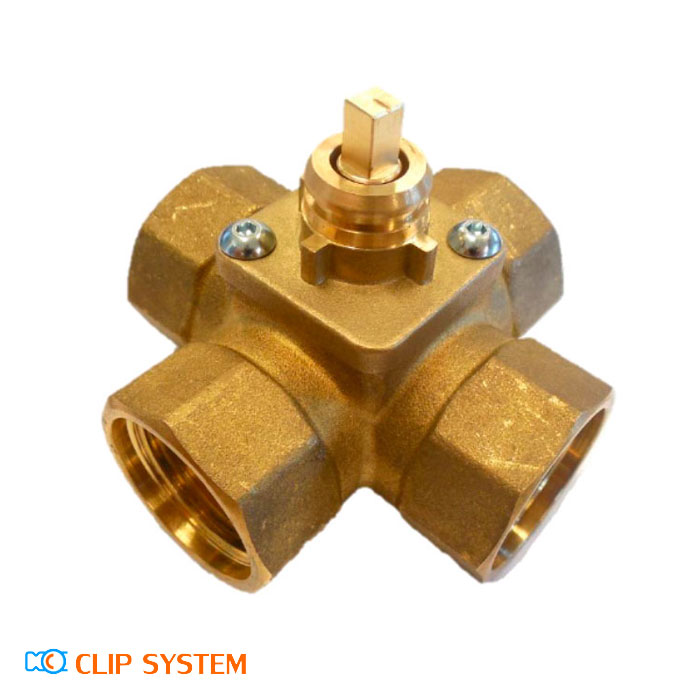

FMV140C
