S9000 - MOD X

2-way, 3-way, 4-way and 6-way valves

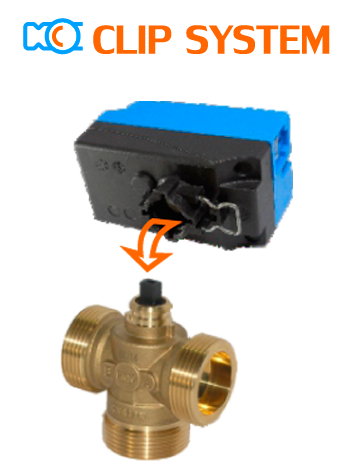

FIRŠT actuators EMV 110, series S9000 MOD, are modulating control actuators designed for operating 2-way, 3-way, 4-way and 6-way valves with clip system (DN15 - DN25).

  • The FIRŠT S9000 MOD X actuators have control signal range (0..10V, 4..20mA) and output signal 0..10V DC .
  • Actuators are available with cable or Molex connection with or without manual control handle.
  • Actuators have DIP switches for setting different functions of the actuator.
  • Recommended for mixing,diverting and modulating water control .

Back to products / ACTUATORS

S9000-MOD

S9000-MOD X, electric actuator

Code TYPE Voltage Rotation time Control signal Max. torque [Nm] Weight [kg]
14097 9FR7-M MOD X 24 V~ 50 Hz 110s/90° Modulating 0-10V 5 0,33
14098 9FR7-K MOD X 24 V~ 50 Hz 110s/90° Modulating 0-10V 5 0,48
14091 9FT7-M MOD X 24 V~ 50 Hz 40s/90° Modulating 0-10V 5 0,33
14092 9FT7-K MOD X 24 V~ 50 Hz 40s/90° Modulating 0-10V 5 0,48
Control: 0...10 VDC, 4...20 mA
Output signal: 0... 10 VDC, max < 0,5 mA/ 10V
Supply voltage: 24 VAC , 50Hz
Rotation time: 20s/90°, 40s/90°, 55s/90°, 80s/90°, 110s/90°,
Power consumption: 3,5 VA (operation), 1,5 VA (in stand by)
Max.Torque: 5 Nm
Protection class: II
Enclosure rating: IP40 (Molex), IP44 (Cable connection),
IP44 (specially sealed Molex cable)
Connection: cable 4 x 0,5 mm2, l=1m / Molex connection
Direction of rotation: defined CW/CCW (90°)
Manual operation: with or without manual control handle
Position indicator: handle with position indicator
Media temperature: +2°C..+110°C (With optional SCA adaptor -15°C to +125°C,
briefly up to +150°C)
Ambient temperature: 0°C..+55°C
Storage temperature: -10°C..+70°C
Humidity: 0%..80% R.H. (non condensed)

Operation:

Actuators S9000-MOD X are recommended for modulating water control with FBV 200C-M valves. Actuators can also be used for mixing or diverting applications with FBV 230C valves and FBV 330C valves or for on/off applications with FBV 200C valves.

Installation position:

S9000-MOD

Electrical connection:

S9000-MOD

Installation examples:

S9000-MOD

Features and options:

Connection: Molex connector (IP40) and optional specially sealed Molex cable (IP44) or cable (4x0,5mm2, l=1m)- (IP44).
Different running times: 20s/90°, 40s/90°, 55s/90°, 80s/90°, 110s/90°
Solar/cooling adapter: Heat barrier for protection of the actuator in solar or cooling systems.
Manual control handle: with or without manual control handle

S9000-MOD


S9000-MOD X

Datasheet

S9000-MODX

Instructions
Actuators S9000 MOD X with
FBV 200C-M valves

S9000-MODX

Instructions
Actuators S9000 MOD X with
FBV 230C valves

S9000-2PND

Series 9000
compatibility table

ADAPTOR KITS

Code Image Designation Data Sheet
58100 SCA adapter Data sheet SCA
58102 ICA adapter set (ISO-CLIP SYSTEM) Data sheet ICA

OPTIONS

Code Image Designation Data Sheet
10556 Cable connector with molex IP 40 3x0.75mm 2 l=1m Data sheet IP40 Molex cable connector
10561 Cable connector with molex IP 40 3x0.75mm 2 1,7m Data sheet IP40 Molex cable connector
10557 Cable connector with molex IP 40 4x0.5mm 2 l=1m Data sheet IP40 Molex cable connector
10755 Cable connector with molex IP44 3x0.75mm 2 l=1,7m Data sheet IP44 Molex cable connector
10756 Cable connector with molex IP44 4x0.5mm 2 l=1,7m Data sheet IP44 Molex cable connector


FBV-230C
FBV 230C 		FBV-330C
FBV 330C 		FBV-200CM
FBV 200C-M 		FBV-200C
FBV 200C 		FBV-660C
FBV 660C 		FBV-400C
FBV 400C
