Products - CONTROLLERS Room thermostats, Differential thermostats, Heating regulators, fittings, and accessories


with Clip system for 2-way and 3-way valves

FIRŠT UNI TEMP, are constant temperature controllers designed for operating 2-way and 3-way valves (DN 15 - DN 50).

  • The FIRŠT UNITEMP controllers have defined direction of rotation (90° rotating angle).
  • Actuators have LED temperature display and knob for adjusting desired temperature.
  • Actuators have DIP switches for setting different functions of the actuator.

Back to products / CONTROLLERS



Code TYPE Voltage Rotation time Control signal Connection Max. torque [Nm] Weight [kg]
21136 UNITEMP 230 VAC 50 Hz 73s/90°
Cable 15
21135 UNITEMP 24 VAC 50 Hz 73s/90°
Cable 15 1,34

Supply voltage: 230 VAC 50Hz (with adapter),
24 VAC 50Hz (without adapter)
Rotation time: 73s/90°
Power consumption: 7,5 VA (operation), 6 VA (stand by)
Max.Torque: 15 Nm
Protection class: II
Enclosure rating: IP44
Connection: cable 1,7 m, 2 x 0,75 mm2
Direction of rotation: defined 90° angle
Manual operation: handle and push button
Position indicator: handle with position indicator
Media temperature: +2°C..+110°C (With optional SCA adaptor -15°C to +125°C, briefly up to +150°C)
Ambient temperature: 0°C..+55°C
Storage temperature: -10°C..+70°C
Humidity: 0%..80% R.H. (non condensed)


UNI TEMP is an constant temperature controller with VF sensor and
adjustable temperature setting. It is designed for operating 3-way mixing valves and 2-way control valves. FIRŠT UNI TEMP controllers allow easy installation.

Actuators are available in 230V AC 50 Hz with adapter and are supplied with a 1.7m attached connection cable. Actuator can be manually operated with handle and button on the cover.

UNITEMP actuators are recommended for: maintaining a constant

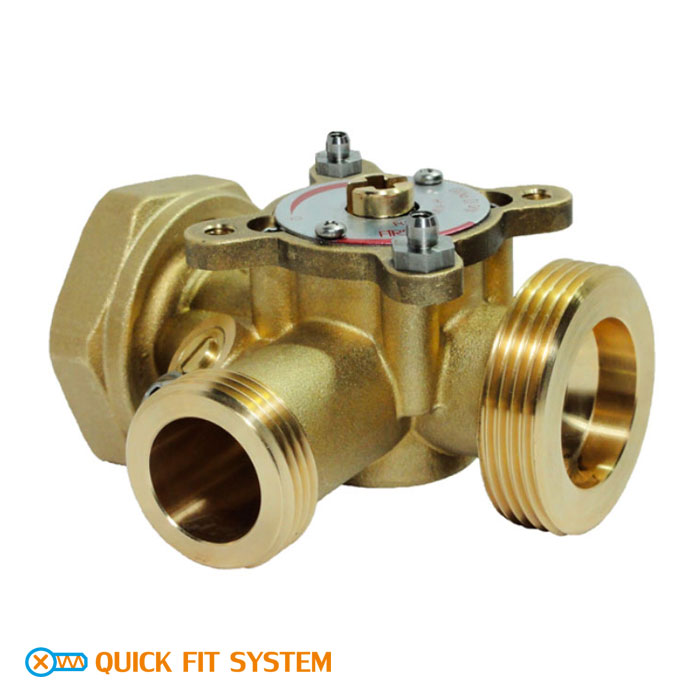

temperature in boiler heating circuit (protection against condensation), use in under floor heating applications, industrial processes, heat accumulators and in domestic hot water systems or swimming pools (individual systems, SPA, public swimming pools). Actuators UNI TEMP are recommended for mixing applications with: FMV 130/130C, FMV H-151/151C, FMV 140/140C, FMV G-131, FMV 140. And for 2-way valves: FBV 200C-M and FBV 690 valves.

Installation position:


Electrical connection:


Installation examples:


Adapter kits:
